DATASHEET - MECHANICAL SCREW LUGS
DATASHEET - MECHANICAL SCREW LUGS
| Material : | Aluminium |
|---|---|
| Finish: | Natural / Tin Plated |
| Made From Extruted Rod | |
| Type Tested for Torque |

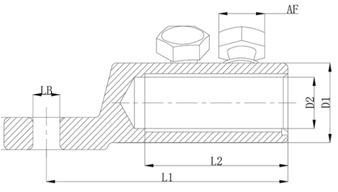

Size Chart / Specification
| Cable Size | Suitable Conductor Size (mm²) | Bolt Size | Item Code | Dimensions are in mm ( Tol. +/- 5% ) | Bolt Qty | A/F | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| LB | D1 | D2 | L1 | L2 | ||||||
| 25/95 mm² | 25 - 95 mm² | M12 | APS MSL 25/95 | 13 | 24 | 12.8 | 60 | 30 | 1 | 13 |
| 35/150 mm² | 35 - 150 mm² | M12 | APS MSL 35/150 | 13 | 28 | 15.8 | 86 | 35 | 1 | 17 |
| 95/240 mm² | 95 - 240 mm² | M12 | APS MSL 95/240 | 13 | 33 | 20 | 112/ | 60 | 1 | 19 |
| 120/300 mm² | 120 - 300 mm² | M16 | APS MSL 120/300 | 17 | 37 | 24 | 115 | 65 | 2 | 22 |
| 185/400 mm² | 185 - 400 mm² | M16 | APS MSL 185/400 | 17 | 42 | 25.5 | 137 | 80 | 2 | 22 |
