APS SOLTECH (OPC) PRIVATE LIMITED

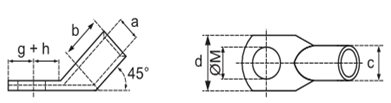

Size/mm²	APS Cat No	ØE	a	b	d	c	g+h
Size/mm²	APS Cat No	ØE	a	b	d	c	g+h	6	APS 6-45E1	M5	3.8	10	8.5	5.5	15.5
6	APS 6-45E2	M6	3.8	10	8.5	5.5	17.5
10	APS 10-45E1	M5	4.5	10	9	6	17
10	APS 10-45E2	M6	4.5	10	9	6	17.5
10	APS 10-45E3	M8	4.5	10	13	6	23
16	APS 16-45E1	M6	5.5	20	13	8.5	18.5
16	APS 16-45E2	M8	5.5	20	13	8.5	23
16	APS 16-45E3	M10	5.5	20	17	8.5	27
16	APS 16-45E4	M12	5.5	20	18	8.5	31
25	APS 25-45E1	M6	7	20	14	10	18.5
25	APS 25-45E2	M8	7	20	16	10	23
25	APS 25-45E3	M10	7	20	17	10	27
25	APS 25-45E4	M12	7	20	19	10	31
35	APS 35-45E1	M8	8.2	20	17	12.5	23
35	APS 35-45E2	M10	8.2	20	19	12.5	27
35	APS 35-45E3	M12	8.2	20	19	12.5	31
35	APS 35-45E4	M14	8.2	20	21	14.5	34.5
50	APS 50-45E1	M8	10	28	20	14.5	23
50	APS 50-45E2	M10	10	28	22	14.5	28
50	APS 50-45E3	M12	10	28	24	14.5	31
50	APS 50-45E4	M14	10	28	24	14.5	34.5
50	APS 50-45E5	M16	10	28	28	14.5	38
70	APS 70-45E1	M8	11.5	28	24	16.5	24
70	APS 70-45E2	M10	11.5	28	24	16.5	28
70	APS 70-45E3	M12	11.5	28	24	16.5	31
70	APS 70-45E4	M14	11.5	28	24	16.5	34.5
70	APS 70-45E5	M16<	11.5	28	30	16.5	38
95	APS 95-45E1	M10	13.5	35	28	19	29
95	APS 95-45E2	M12	13.5	35	28	19	31
95	APS 95-45E3	M14	13.5	35	28	19	34.5
95	APS 95-45E4	M16	13.5	35	32	19	38
120	APS 120-45E1	M10	15.5	35	32	21	32
120	APS 120-45E2	M12	15.5	35	32	21	34
120	APS 120-45E3	M14	15.5	35	32	21	38
120	APS 120-45E4	M16	15.5	35	32	21	41
120	APS 120-45E5	M20	15.5	35	38	21	45
