| Material : | Nylon 6-6, UL 94V-2 |
|---|---|
| Color : | Grey/Black/White |
| Rubber Material : | Neoprene |
| Ref. Standard : | IP 68 |
POLYMIDE CABLE GLAND

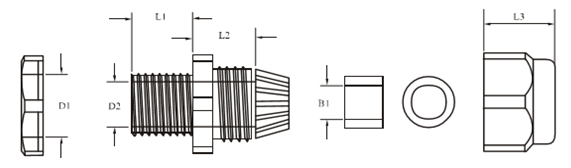

| APS Cat No | Cable Range (mm) | D1 | D2 | L1 | L2 | L3 | B1 |
|---|---|---|---|---|---|---|---|
| APS PG07 | 3.5-6 | 10.9 | 8.1 | 10.4 | 14.5 | 10.5 | 6.4 |
| APS PG09 | 4-8 | 15.3 | 12.2 | 9.9 | 15.8 | 17.2 | 8.6 |
| APS PG11 | 5-10 | 17.9 | 14.6 | 10.6 | 15.5 | 17.5 | 10.7 |
| APS PG13.5 | 6-12 | 20.2 | 16.2 | 10.3 | 17.8 | 17.9 | 13.3 |
| APS PG16 | 10-14 | 21.3 | 18.3 | 11.2 | 18.5 | 20.5 | 14.3 |
| APS PG19 | 12-15 | 24.7 | 20.5 | 11.4 | 18.6 | 21.8 | 15.5 |
| APS PG21 | 13-18 | 26.9 | 21.8 | 11.6 | 18.7 | 23.1 | 16.7 |
| APS PG24 | 15-22 | 29.8 | 25 | 12.1 | 28.3 | 24.1 | 19.2 |
| APS PG29 | 18-25 | 35.1 | 29.8 | 12.4 | 22.6 | 24.8 | 24.8 |
| APS PG36 | 22-32 | 44.7 | 37.1 | 12.6 | 25.1 | 26.1 | 30.7 |
| APS PG42 | 30-38 | 50.4 | 43.3 | 17.3 | 25.9 | 30.5 | 35.6 |
| APS PG48 | 34-44 | 56.1 | 48.2 | 20.9 | 28.1 | 31.5 | 41.4 |
| APS PG63 | 42-54 | 71 | 63.5 | 27.5 | 31.5 | 43.5 | 55 |
