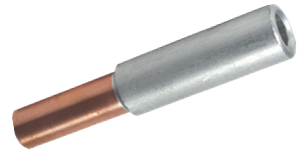

FRICTION WELDED BIMETALLIC CONNECTOR
FRICTION WELDED BIMETALLIC CONNECTOR
| Material : | Copper & Aluminium |
|---|---|
| Finish: | Natural |
| Welding Method: | Friction Welding |
| Ref. Standard: | IEC 61238-1: 2003 |

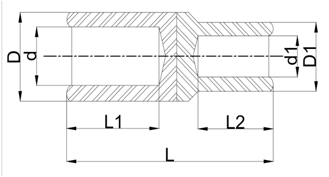

Size Chart / Specification
| Size/mm² | Bolt Size | All Dimensions are in mm ( Tol. +/- 5% ) | ||||||
|---|---|---|---|---|---|---|---|---|
| D | d | L1 | D1 | d2 | L2 | L | ||
| 300 Al/ 240 Cu | APS 300 BF240 | 34 | 23 | 70 | 27 | 21 | 60 | 145 |
