COPPER COMPRESSION TERMINALS - FOUR HOLES
COPPER COMPRESSION TERMINALS - FOUR HOLES
| Material : | ETP Copper |
|---|---|
| Grade : | BS 1977 |
| Finish : | Electro-tinned |

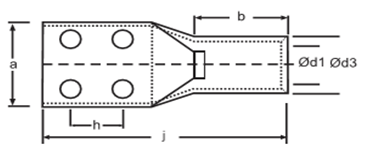

Size Chart / Specification
| Size/mm² | APS Cat No | ØE | a | b | d1 | d3 | h | j |
|---|---|---|---|---|---|---|---|---|
| 300 | APS 304 CU | 8.5 | 42 | 58 | 23.5 | 30 | 20 | 115 |
| 400 | APS 404 CU | 8.5 | 44 | 58 | 28.5 | 36 | 20 | 120 |
| 500 | APS 504 CU | 8.5 | 48 | 58 | 30 | 39 | 20 | 124 |
| 630 | APS 604 CU | 8.5 | 56 | 65 | 35 | 45 | 25 | 144 |
| 630 | APS 704 CU | 10.5 | 56 | 65 | 35 | 45 | 25 | 144 |
| 800 | APS 804 CU | 8.5 | 78 | 73 | 39 | 50 | 30 | 170 |
| 1000 | APS 904 CU | 8.5 | 90 | 81 | 43 | 56 | 40 | 200 |
