Cord End Terminals-Single
Cord End Terminals-Single
| Material : | Copper |
|---|---|
| Finish: | Tin Plated |
| Insulation : | Polypropylene (PP) |
| Ref. Standard: | DIN 44228 Part 4 |

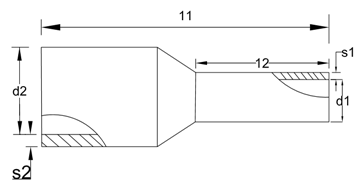

Size Chart / Specification
| Size/mm² | APS Item Code | I1 | I2 | s1 | s2 | d1 | d2 | Color |
|---|---|---|---|---|---|---|---|---|
| 0.5 mm² | APS E0506 | 12 | 6 | 0.2 | 0.3 | 1 | 2.6 | White |
| 0.5 mm² | APS E0508 | 14 | 8 | 0.2 | 0.3 | 1 | 2.6 | |
| 0.5 mm² | APS E0510 | 16 | 10 | 0.2 | 0.3 | 1 | 2.6 | |
| 0.5 mm² | APS E0512 | 18 | 12 | 0.2 | 0.3 | 1 | 2.6 | Gray |
| 0.75 mm² | APS E7506 | 12 | 6 | 0.2 | 0.3 | 1.2 | 2.8 | |
| 0.75 mm² | APS E7508 | 14 | 8 | 0.2 | 0.3 | 1.2 | 2.8 | |
| 0.75 mm² | APS E7510 | 16 | 10 | 0.2 | 0.3 | 1.2 | 2.8 | |
| 0.75 mm² | APS E7512 | 18 | 12 | 0.2 | 0.3 | 1.2 | 2.8 | |
| 1.0 mm² | APS E1006 | 12 | 6 | 0.2 | 0.3 | 1.4 | 3 | Red |
| 1.0 mm² | APS E1008 | 14 | 8 | 0.2 | 0.3 | 1.4 | 3 | |
| 1.0 mm² | APS E1010 | 16 | 10 | 0.2 | 0.3 | 1.4 | 3 | |
| 1.0 mm² | APS E1012 | 18 | 12 | 0.2 | 0.3 | 1.4 | 3 | |
| 1.5 mm² | APS E1508 | 14.5 | 8 | 0.2 | 0.3 | 1.7 | 3.5 | Black |
| 1.5 mm² | APS E1510 | 16.5 | 10 | 0.2 | 0.3 | 1.7 | 3.5 | Black |
| 1.5 mm² | APS E1512 | 18.5 | 12 | 0.2 | 0.3 | 1.7 | 3.5 | Black |
| 1.5 mm² | APS E1518 | 24.5 | 18 | 0.2 | 0.3 | 1.7 | 3.5 | Black |
| 2.5 mm² | APS E2508 | 15.5 | 8 | 0.2 | 0.3 | 2.3 | 4 | Blue |
| 2.5 mm² | APS E2510 | 17.5 | 10 | 0.2 | 0.3 | 2.3 | 4 | |
| 2.5 mm² | APS E2512 | 18.5 | 12 | 0.2 | 0.3 | 2.3 | 4 | |
| 2.5 mm² | APS E2518 | 25.5 | 18 | 0.2 | 0.3 | 2.3 | 4 | |
| 4.0 mm² | APS E4009 | 16.5 | 9 | 0.2 | 0.4 | 2.8 | 4.5 | Grey |
| 4.0 mm² | APS E4010 | 17.5 | 10 | 0.2 | 0.4 | 2.8 | 4.5 | |
| 4.0 mm² | APS E4012 | 19.5 | 12 | 0.2 | 0.4 | 2.8 | 4.5 | |
| 4.0 mm² | APS E4018 | 25.5 | 18 | 0.2 | 0.4 | 2.8 | 4.5 | |
| 6.0 mm² | APS E6010 | 18.5 | 10 | 0.2 | 0.4 | 3.5 | 6 | Yellow |
| 6.0 mm² | APS E6012 | 22 | 12 | 0.2 | 0.4 | 3.5 | 6 | |
| 6.0 mm² | APS E6018 | 28 | 18 | 0.2 | 0.4 | 3.5 | 6 | |
| 10 mm² | APS E10-12 | 22 | 12 | 0.2 | 0.5 | 4.5 | 7.6 | Red |
| 10 mm² | APS E10-18 | 28 | 18 | 0.2 | 0.5 | 4.5 | 7.6 | |
| 16 mm² | APS E16-12 | 22 | 12 | 0.2 | 0.5 | 5.8 | 8.7 | Blue |
| 16 mm² | APS E16-18 | 28 | 18 | 0.2 | 0.5 | 5.8 | 8.7 | |
| 25 mm² | APS E25-16 | 28 | 16 | 0.3 | 0.5 | 7.5 | 11 | Yellow |
| 25 mm² | APS E25-18 | 30 | 18 | 0.3 | 0.5 | 7.5 | 11 | |
| 25 mm² | APS E25-22 | 34 | 22 | 0.3 | 0.5 | 7.5 | 11 | |
| 35 mm² | APS E35-16 | 30 | 16 | 0.3 | 0.5 | 8.3 | 12.5 | Red |
| 35 mm² | APS E35-18 | 32 | 18 | 0.3 | 0.5 | 8.3 | 12.5 | |
| 35 mm² | APS E35-25 | 39 | 25 | 0.3 | 0.5 | 8.3 | 12.5 | |
| 50 mm² | APS E50-20 | 36 | 20 | 0.3 | 0.5 | 10.3 | 15 | Blue |
| 50 mm² | APS E50-25 | 41 | 25 | 0.3 | 0.5 | 10.3 | 15 | |
| 70 mm² | APS E70-20 | 37 | 20 | 0.4 | 0.5 | 13.5 | 16 | Yellow |
| 70 mm² | APS E70-27 | 42 | 27 | 0.4 | 0.5 | 13.5 | 16 | |
| 95 mm² | APS E95-25 | 48 | 25 | 0.4 | 0.8 | 14.5 | 18 | Red |
| 120 mm² | APS E120-27 | 47.6 | 27 | 0.5 | 0.8 | 16.5 | 20.3 | Blue |
| 150 mm² | APS E150-32 | 53 | 32 | 0.5 | 1 | 19.6 | 23.4 | Yellow |
