Continuous Type Cord End Terminals
Continuous Type Cord End Terminals
| Material : | Copper |
|---|---|
| Finish : | Tin Plated |
| Insulation : | Polypropylene (PP) |
| Ref. Standard: | DIN 46228 Part |
Size Chart / Specification

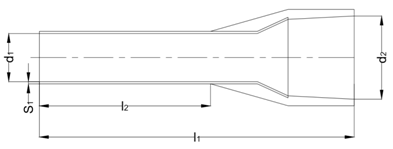

| Size/mm² | Bolt Size | All Dimensions are in mm ( Tol. +/- 5% ) | |||||
|---|---|---|---|---|---|---|---|
| d1 | d2 | s1 | I2 | I1 | Color | ||
| 0.5 mm² | APS ER0508 WH | 1.0 | 2.6 | 0.2 | 8 | 14 | White |
| 0.75 mm² | APS ER7508 GR | 1.2 | 2.8 | 0.2 | 8 | 14 | Grey |
| 1.0 mm² | APS ER1008 RD | 1.4 | 3 | 0.2 | 8 | 14 | Red |
| 1.5 mm² | APS ER1508 BLK | 1.7 | 3.5 | 0.2 | 8 | 14.5 | Black |
| 2.5 mm² | APS ER2508 BLU | 2.3 | 4 | 0.2 | 8 | 15.5 | Blue |
| 4.0 mm² | APS ER4009 GR | 2.8 | 4.5 | 0.2 | 9 | 16.5 | Grey |
| 6.0 mm² | APS ER6012 YL | 3.5 | 6 | 0.2 | 12 | 22 | Yellow |
