DATASHEET - MECHANICAL SCREW CONNECTOR
DATASHEET - MECHANICAL SCREW CONNECTOR
| Material : | Aluminium |
|---|---|
| Finish: | Natural Tin Plated |
| Made From Extruted Rod | |
| Type Tested For Torque |

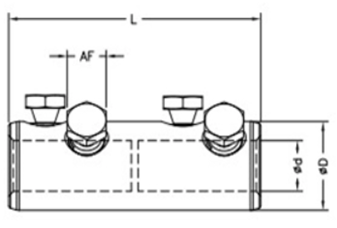

Size Chart / Specification
| Cable Size | Suitable Conductor Size (mm²) | Item Code | Dimensions are in mm ( Tol. +/- 5% ) | Bolt Qty | |||
|---|---|---|---|---|---|---|---|
| d | D | L | A/F | ||||
| 25/50 mm² | 25 - 50 mm² | APS MSC 25/50 | 10 | 20 | 70 | 13 | 4 |
| 25/95 mm² | 25 - 95 mm² | APS MSC 25/95 | 13 | 24 | 90 | 13 | 4 |
| 50/150 mm² | 50 - 150 mm² | APS MSC 50/150 | 16 | 31 | 110 | 17 | 4 |
| 95/240 mm² | 95 - 240 mm² | APS MSC 95/240 | 20 | 35 | 110 | 19 | 4 |
| 150/240 mm² | 150 - 240 mm² | APS MSC 150/240 | 20 | 35 | 110 | 19 | 4 |
| 185/400 mm² | 185 - 400 mm² | APS MSC 185/400 | 26 | 42 | 180 | 24 | 6 |
| 300/400 mm² | 300 - 400 mm² | APS MSC 300/400 | 26 | 42 | 180 | 24 | 6 |
