Cord End Terminals-Single
Cord End Terminals-Single
| Material : | Copper & Aluminium |
|---|---|
| Finish: | Natural |
| RoHS : | Compliance |
| Ref. Standard: | DIN 44228 Part 4 |

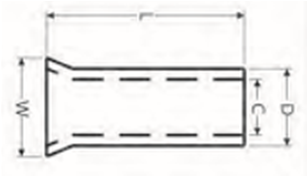

Size Chart / Specification
| Size/mm² | APS Item Code | All Dimension are in mm (Tolerance - ±5% ) | |||
|---|---|---|---|---|---|
| L | W | D | C | ||
| 1.0 mm² | APS EN1006 | 6 | 2.2 | 1.7 | 1.4 |
| 2.5 mm² | APS EN2508 | 8 | 3.3 | 2.6 | 2.3 |
| 4.0 mm² | APS EN4009 | 9 | 3.9 | 3.2 | 2.8 |
