SINGLE COMPRESSION CABLE GLANDS
| Material : | Brass |
|---|---|
| Finish : | Nickel Plated |
| Rubber Material : | Neoprene |
| Ref. Standard : | IS 12943 |
SINGLE COMPRESSION CABLE GLANDS

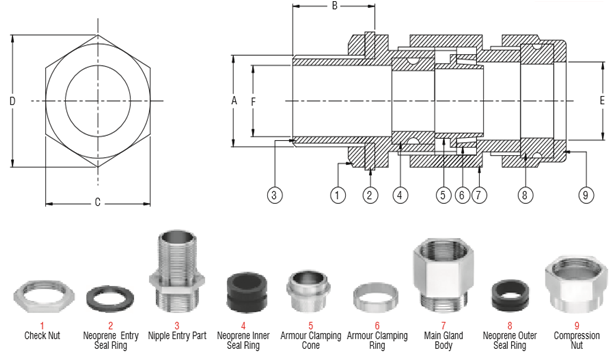

| Suitable Cable OD | APS Cat No. | Nipple Entry | A (A/F) | B Armour OD | C Strip OD Cable | D Thread | E Thread Length |
|---|---|---|---|---|---|---|---|
| Size | Inches | mm | mm | mm | ET / BSE | mm | |
| 10 mm (3/8") | APS SC10 | 3/8" | 16.5 | 12.5 | 12 | 3/8" | 6.5 |
| 12 mm (1/2") | APS SC12 | 1/2" | 20.5 | 15 | 12 | 1/2" | 6.5 |
| 16 mm (5/8") | APS SC16 | 5/8" | 20.5 | 15 | 15 | 5/8" | 6.5 |
| 22 mm (7/8") | APS SC22 | 7/8" | 25 | 20.5 | 15.5 | 7/8" | 7.5 |
| 25 mm (1") | APS SC25 | 1" | 27.5 | 23.5 | 22 | 1" | 7.5 |
| 28 mm (1.1/8") | APS SC28 | 1.1/8" | 33.5 | 28 | 25 | 1.1/8" | 9 |
| 32 mm (1.1/4") | APS SC32 | 1.1/4" | 36.5 | 31.5 | 28 | 1.1/4" | 9 |
| 35 mm (1.3/8") | APS SC35 | 1.3/8" | 41 | 36 | 30 | 1.3/8" | 9 |
| 38 mm (1.1/2") | APS SC38 | 1.1/2" | 44 | 38.5 | 33.75 | 1.1/2" | 9.5 |
| 45 mm (1.3/4") | APS SC45 | 1.3/4" | 49.5 | 44.5 | 40.5 | 1.3/4" | 10 |
| 50 mm (2") | APS SC50 | 2" | 58 | 51.5 | 45.5 | 2" | 11 |
| 57 mm (2.1/4") | APS SC57 | 2.1/4" | 64 | 57.5 | 52.5 | 2.1/4" | 10.5 |
| 63 mm (2.1/2") | APS SC63 | 2.1/2" | 70 | 62.5 | 58.5 | 2.1/2" | 12 |
| 70 mm (2.3/4") | APS SC70 | 2.3/4" | 76 | 69 | 63 | 2.3/4" | 12 |
| 75 mm (3") | APS SC75 | 3" | 82.5 | 75.5 | 70.5 | 3" | 13 |
| 100 mm (4") | APS SC100 | 4" | 110 | 100 | 90 | 4" | 16.5 |
